Oilfield fabrication & manufacturing
Steel fabrication, modular buildings and oilfield materials — made in our workshop, erected on your site.
Fabrication
Made to your drawings, delivered to your field
Skid assembly
Alongside supply and construction, Golden Ensign fabricates the steelwork, modular buildings and support structures that oil and gas facilities are built from — then transports, erects and commissions them on remote sites across Iraq.
Work is carried out to the client's drawings and specification. Material certificates, welding records and inspection reports are issued with the delivery, and our own crews handle load-out, site erection and connection so responsibility stays in one place from the workshop floor to handover.
Steel structures and trusses
Portal frames, shelters, canopies, warehouses and K-span buildings, with trusses fabricated in-house to the required sizes and dimensions.
Tanks and vessels
Storage tanks of all types, together with the pumping stations, piping and manholes that serve them.
Skids and equipment bases
Steel bases and structures for power generation sets, pump and equipment skids, complete with accessories.
Modular buildings and caravans
Steel-framed and wooden accommodation, office and ablution modules of fireproof design, including multi-level buildings, manufactured and fitted out with electrical, sanitary and furniture works.
Fencing and site protection
BRC and chain-link fencing imported and manufactured, plus security walls and site enclosures for facilities and camps.
Workshop
What the shop can do

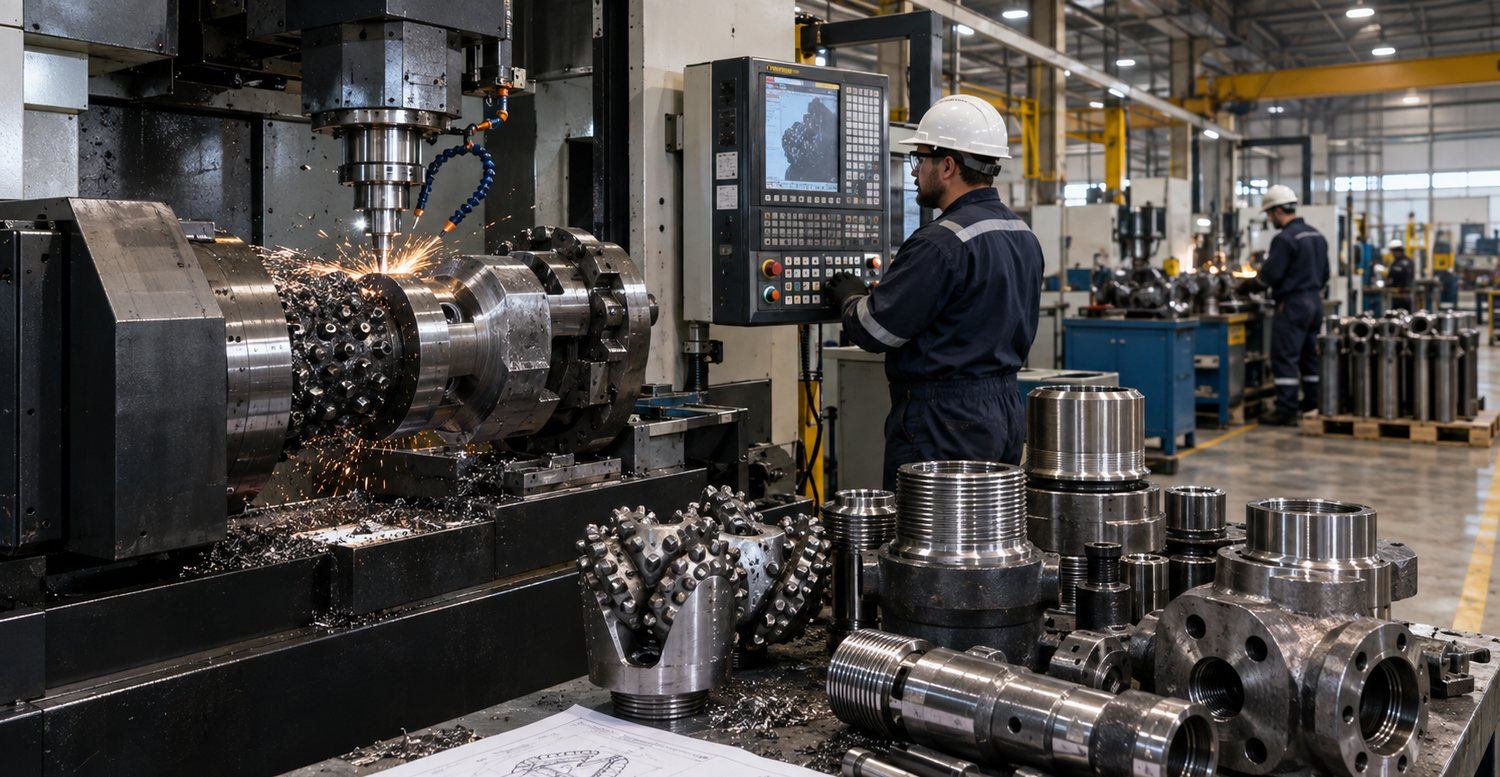

Machining and finishing
An equipped workshop with the tools and cadre to fabricate, finish and maintain — backed by teams that travel to site when the work cannot come to us.
- Cutting, beveling, rolling and forming of plate and sections
- Fit-up and welding of structural steel and pipework
- Surface preparation, blasting and protective painting or coating
- Assembly, fit-out and testing before dispatch
- Transport, site erection, alignment and connection
- On-site maintenance, including generator servicing at the client's location
Materials
Oilfield materials and equipment we supply
Where an item is better bought than built, we source it. Our trading division imports oilfield materials from global origins for the public and private sectors, with speed of supply against technical specification as the thing we are judged on.

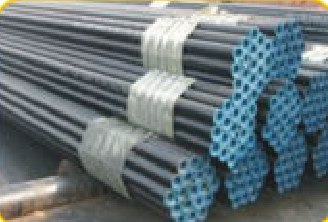

- Line pipe in various sizes, dimensions and types, coated and bare

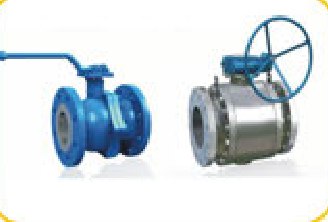

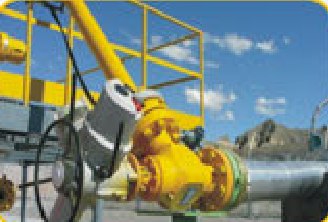

- Valves — ball, gate, globe, check and control valves for process duty
- Pumps — high-capacity process and water pumps across a range of horsepower, with skids and accessories

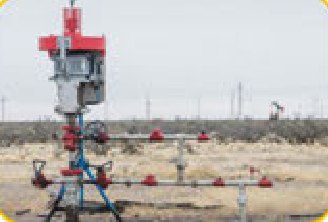

- Wellhead and flow line accessories for field installations
- Flanges, fittings and pipe supports to complete the run
- Consumables and spare parts for oil, gas and power sector operations
- Safety equipment and PPE for field and facility crews
Inspection before despatch
Instrumentation
Process instrumentation and analysers
Through our commercial agency and supply activity we source process measurement and analyser packages from established international manufacturers, and deliver them to operators and EPC contractors in Iraq.
This part of our work is carried out in cooperation with AIMS Oil and Gas Equipment Manufacturing LLC of Abu Dhabi, United Arab Emirates, which manufactures and integrates analyser and measurement equipment at its ICAD facility. Golden Ensign represents and supplies this equipment to clients in Iraq, and handles delivery, installation support and after-sales follow-up locally.
Equipment listed below is manufactured by AIMS or by the original equipment manufacturers named against each item. Product specification, certification and warranty remain those of the manufacturer.
Water cut meters
Sentech — manufactured by AIMS
Capacitance-based measurement of water content in oil, for production optimisation and product quality control, manufactured at the AIMS facility in Abu Dhabi.
- Stainless steel meter body and flanges
- 3″ with 4 sensors, 4″ with 4 sensors, 6″ with 6 sensors
- Built for harsh industrial environments
Air quality and emission analysers
Thermo Scientific
Ambient air quality and continuous emission monitoring, plus process and portable analysers.
- SO₂, NOx, CO, O₃, PM10 / PM2.5 — US EPA approved analysers
- TVA2020 portable FID/PID toxic vapour analyser, intrinsically safe
- SOLA iQ total sulfur on-line analyser
- Prima PRO process mass spectrometer
Laser gas analysers
ap2e
Pre-calibrated multi-component laser infrared spectrometers for process gas and emission monitoring.
- ProCeas — combustion process, LNG, pure gas and trace ambient air
- LaserCEM — emission monitoring for incinerators, refineries and cement plants
- OFCEAS TDL technology, no optical moving parts, ATEX and IECEx rated
- Direct measurement without a scrubber; annual maintenance interval
Hydrogen process analysers
H2scan
Solid-state, non-consumable sensors giving direct hydrogen measurement without cross-sensitivity to other gases.
- HY-OPTIMA 2700 series — explosion proof, in-line
- HY-OPTIMA 1700 series — ATEX certified intrinsically safe
- HY-OPTIMA 700B series — in-line process analyser
Ignition and flame monitoring
DURAG · Smitsvonk
Burner and flare ignition systems with the detection and control equipment that supervises them.
- Gas fired, oil fired and dual fuel igniters
- Pilot burner flare ignition systems and portable igniters
- E-SPARK high energy ignition device
- Compact flame monitors, burner control units and furnace cameras
Temperature measurement
Rodax
Temperature sensors and assemblies for general and demanding applications, including high-vibration service.
- Thermowells, including high temperature
- RTD elements and assemblies
- Thermocouple probes and assemblies, skin thermocouples
- Reactor multipoint assemblies
Gas metering and analysis
Custody transfer and secondary metering, with on-line composition analysis.
- PGC 9300 series process gas chromatographs — natural gas, biogas, and streams containing hydrogen, oxygen and helium
- Turbine gas flow meters, mechanical or battery-powered electronic
- Ultrasonic gas meters
Laser gas analysers — GasEye
Airoptic
Tunable diode laser analysers in three configurations, chosen by where the measurement has to be taken.
- GasEye in-situ — in-situ measurement for very harsh service with corrosive gases, high temperatures and duct load, such as combustion control in a power plant. ATEX, IECEx and KC certified; CSA pending.
- GasEye Extractive — in-line measurement for ultra-sensitive detection in a process stream, for example hydrogen purity. ATEX certified.
- GasEye Open Path — open-space gas concentration measurement over distances up to one kilometre, for fast detection of fugitive gases and fence-line monitoring.
Process cameras
Visual monitoring inside gas processing equipment — liquid removal, mercury removal, dehydration and nitrogen rejection units — for early detection of leaks and equipment faults.
Instrument tubing bundles
AIMS
Pre-insulated and traced tubing for steam and condensate distribution, analyser sample transport, and freeze protection of impulse lines.
- Single insulated, steam traced (high and low temperature), electrically traced and jacketed
- Material, size and wall thickness to order
- Durable weatherproof jackets
Fabrication rarely ends at the workshop gate. We are set up for full turnkey camp construction for oil and gas companies, delivered on time and cost-effectively in remote and challenging environments.
- Site preparation, foundations and security wall construction
- Erection of steel structures, pipe racks and modular buildings
- Mechanical, electrical and sanitary installation to make a camp fully functional
- Utility equipment provision, installation and commissioning
- Fire alarm and firefighting systems, designed and installed
- Logistical and security arrangements for remote sites within Iraq
